雕镂装备

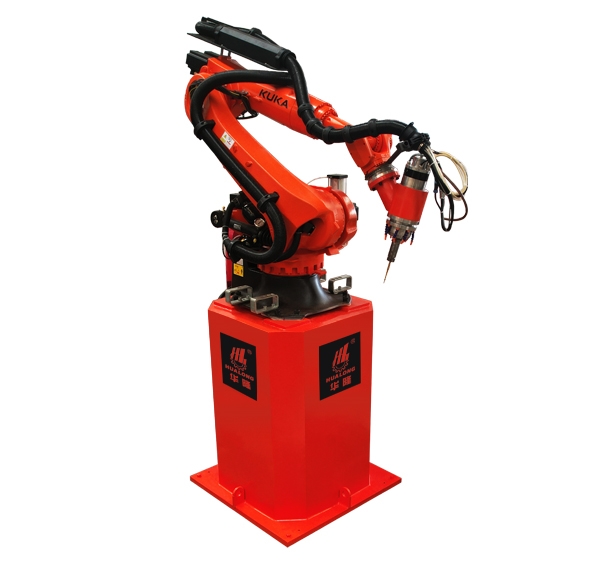

7 Axis Robot Arm CNC RouterHLRB-7A3D 7轴机器人

领跑智能制作新“石”代

7 Axis Robot Arm CNC RouterHLRB-7A3D 7轴机器人

所属单位国产品牌:华隆 隶属种别:雕镂装置

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

推销产品(pin)可发表评论德律风(feng)ꦚ座机(ji)号,咱(zan)门(men)♔会与(yu)您约见!

Purchase please leave a message phone and email, we will contact you!

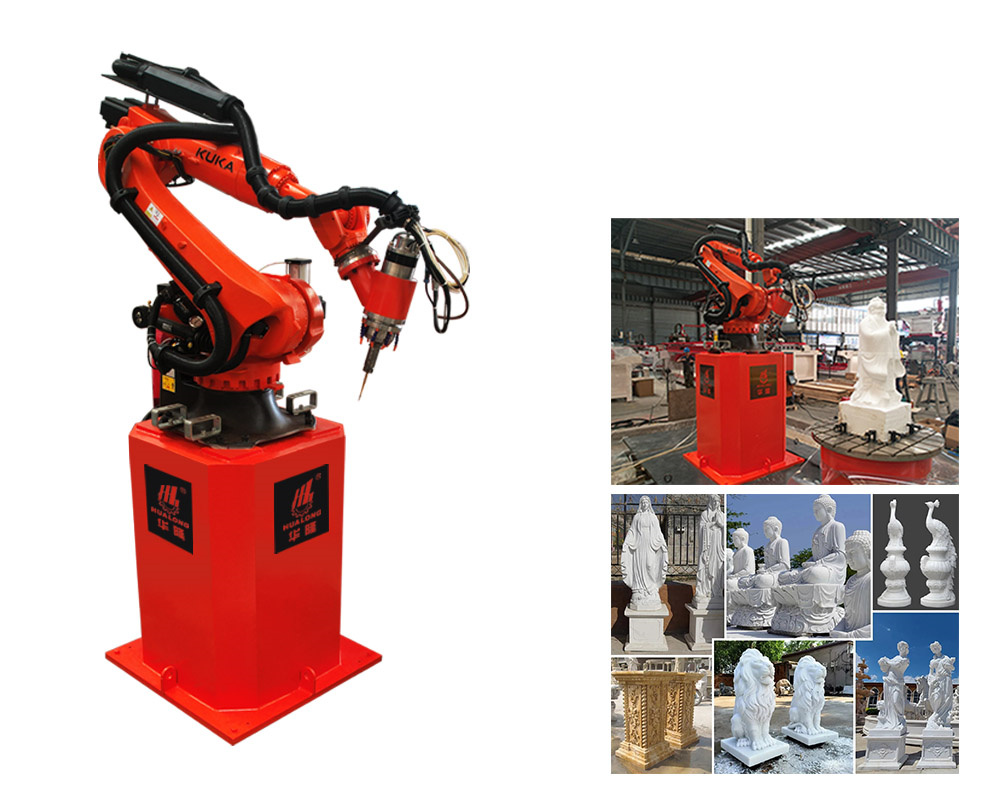

HLRB-7A3D七轴机器人是在库卡机器人的根本上,专为3D石雕工艺设想的主动化集成二次开辟产物,接纳离线编程体系Sprut CAM对庞杂三维外型雕塑主动化加工,设置装备摆设能够矫捷变革,具备任务速率快、高精度(高速轴集成在手臂上)、多功效、主动化、操纵便利等长处。今朝在异型石材雕镂、石膏产物雕镂、泡沫产物雕镂、陶瓷模具、玻璃钢成品等圆雕、浮雕范畴都已构成了焦点手艺的堆集。
HLRB-7A3D 7 Axis Robot is an automation integrated and secondary developedproduct on the base of KUKA robot, specially  designed for 3D stone carving process, very strong, high- precision (high-speed shaft integrated in the arm), verstile and easy to operate.It uses the offline programming system Sprut CAM to perform complex workpiece processing. The configuration can be changed at will. The robot can work normally even in harsh environments, with a service life of up to 15 years and an average time between accidents as long as 70,000 hours.


Features:
(1) Work quickly and efficiently with extremely high continuous track accuracy
(2) Working circumference of 3100 mm
(3) The software can realize the automation of complex 3D modelling sculpture processing
(4) Routing robots can produce more parts per hour than manual routing or CNC machine routing
(5) Ro꧅bots increase productivity, repeatability, and quality while helping to si💮mplify a tedious and complex application.


接洽咱们,获得完全计划!
Contact us to obtain the complete solution!




手艺参数

TECHNICAL DATA

HLRB-7A3D 7 Axis Robot

生活短路电流

Actual Load

210 kg
最明显臂展 Max. Armspread 2700 mm
大精加工尺寸大小 Max. Processable Size 1000x2500mm
换向展转人物台直劲 Diameter of Rotation Worktable 1000 mm
主轴轴承效率 Spindle power 15 kw
较大主轴轴承转速比 Max. Rotating Speed of Spindle

18500 rpm/min

出现地位的精密度 Repeat positioning accuracy

< +/- 0.06 mm

撑持的材料 Tools supported

粗激(ji)光(guang)加工(gong)锯(ju)/合(he)金镗刀/立合(he)金镗刀/打磨抛(pao𝐆)光(guang)轮

手机app Offline Software Sprut CAM

轴 1 的(de)活动方案规(gui)模性和(he)传输速率

Motion range & Speed of Axis 1 +/-185° 86°/s

轴 2 的(de)活(huo)跃总量和传(chuan)送速度

Motion range & Speed of Axis 2 0°/-146° 84°/s

轴 3 的行为建设规(gui)模和(he)传送速(su)度

Motion range & Speed of Axis 3 +155°/ -119° 84°/s

轴 4 的(de)主题(ti)活动面积和强度(du)

Motion range & Speed of Axis 4 +/-350° 100°/s

轴(zhou) 5 的主题活动市场规模和速率单位

Motion range & Speed of Axis 5 +/-125° 110°/s

轴(zhou) 6 的游戏活动人数和传送速(su)度

Motion range & Speed of Axis 6 +/-350° 184°/s

轴 7 的活(huo)动内容数量(liang)和浓度(du)

Motion range & Speed of Axis 7

无(wu)穷逆(ni)转 84°/s
